Home » Products » Flute Laminating Machine » BZJ-B Series Semi-Automatic Flute Laminating Machine

Automatic Corrugated Carton Box Making Machine

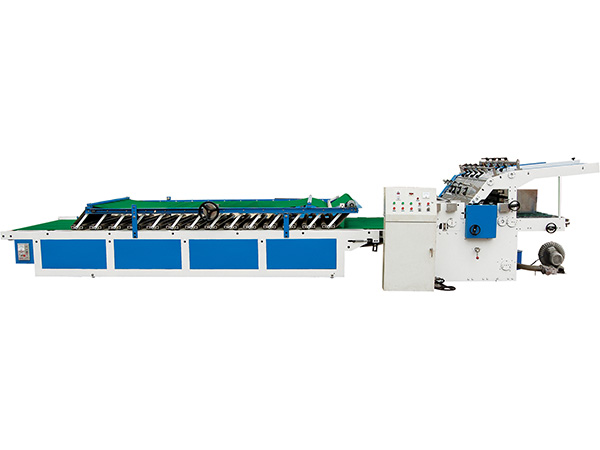

BZJ-B Series Semi-Automatic Flute Laminating Machine

Our BZJ-B series semi-automatic flute laminating machine is applicable to sheet-to-sheet laminating, including cardboard to cardboard and linerboard to corrugated board with all kinds of flutes. The difference between this series semi automatic flute laminator and the BZJ-A series is that the bottom sheet is fed by automatic suction feeding system while the top linerboard is fed manually. In addition, it is also an ideal unit in the high end packaging boxes production line.

Technical Parameters of BZJ-B Semi-Automatic Flute Laminating Machine
Model BZJ-B-1300S BZJ-B-1450S BZJ-B-1600S
Max. sheet size (mm) 1300×1100 1450×1100 1600×1400
Min. sheet size (mm) 350×350 350×350 350×350
Bottom paper Min. weight (g/m2) 300 300 300
Max. weight (g/m2) 800 800 800
Max. thickness (mm) 10mm 10mm 10mm
Top paper Min. weight (g/m2) 150 150 150
Max. weight (g/m2) 800 800 800
Margin of error of fitting (mm) ±1.0 ±1.0 ±1.0
Max. machine speed (pcs /min) 0-80 0-80 0-80
Total power(kW) 5 5 5
Machine length (m) 8.8 8.8 8.8
Total weight (kg) 3500 3800 4000
Main Features of BZJ-B Semi-Automatic Flute Laminating Machine
  • The corrugated machine come with an automatic suction feeding system for bottom corrugated board and a manual feeding system for top linerboard, ensuring convenience and accuracy. The bottom and top sheet employs photoelectric control and are positioned by special front guide which guarantee accurate positioning. The bottom sheet never goes ahead.
  • This series semi-automatic flute laminating machine adopts suspension lamination style, enabling cardboard to be evenly pressed and stably transported, thus producing flat and beautiful boards. The stress belt can move forward and backward, hence suitable for various cardboards.
  • Main parts are introduced from well reputed suppliers at home and abroad, thus ensuring long service life and great stability.
