SF-320C/360C/380C

Vacuum Fingerless Adsorption Single Facer

Corrugating machine

Inquiry

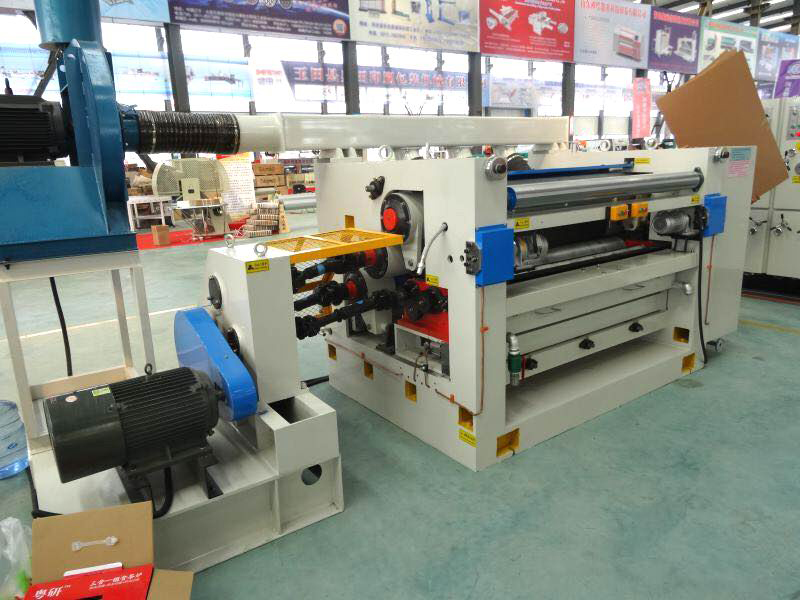

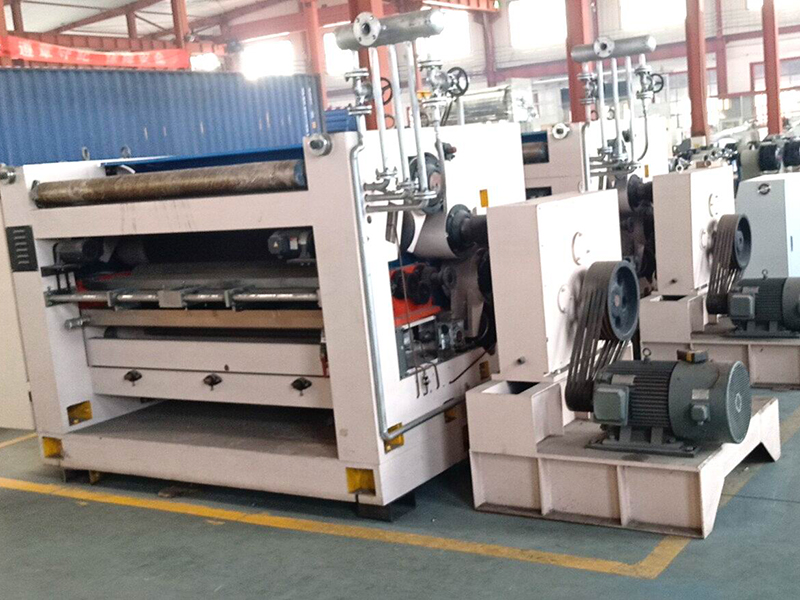

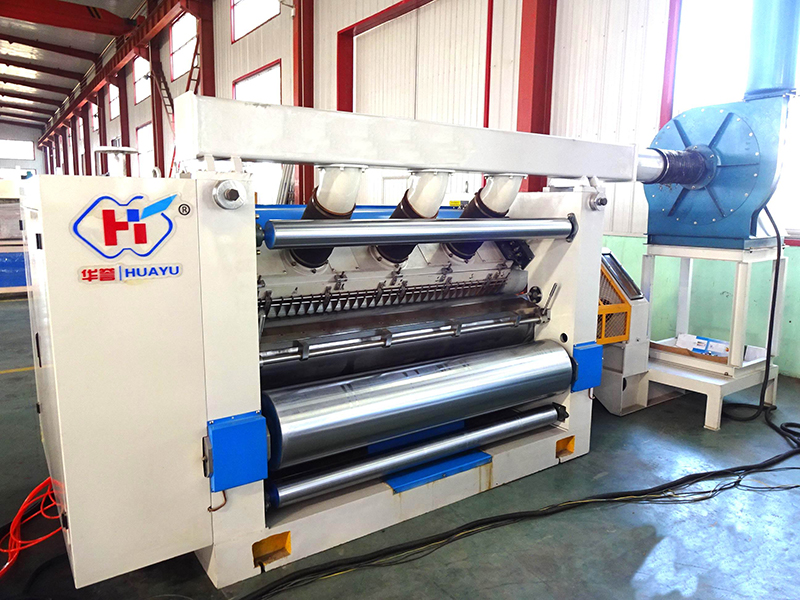

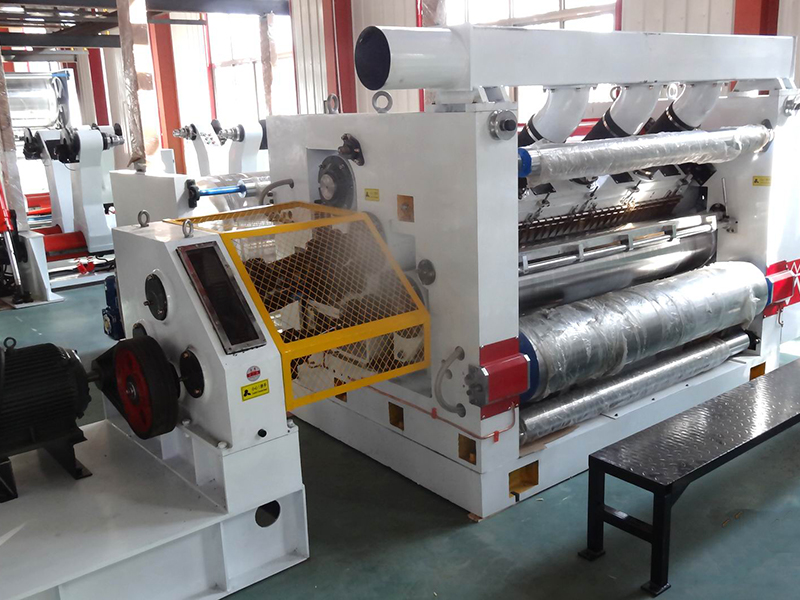

The SF-320C/360C/380C fingerless adsorption single facer corrugator machine is essential for producing high-quality single-face corrugated cardboard at high speeds.

This high-speed machine is designed to efficiently produce single flute corrugated cardboard, with the option to equip a tungsten carbide corrugated flute roller for enhanced durability and precision. Our single facer is capable of producing various flute types like A, B, C, E, and F. As a vital part of both single face and automatic 3/5/7-layer corrugated cardboard production lines, it stands out in the corrugated packaging industry for its efficiency, precision, and fingerless design, which ensures smoother and more stable cardboard production.

Features
  • Speed options: The SF-320C runs at 150m/min, the 360C at 180m/min, and the 380C tops out at 200m/min.

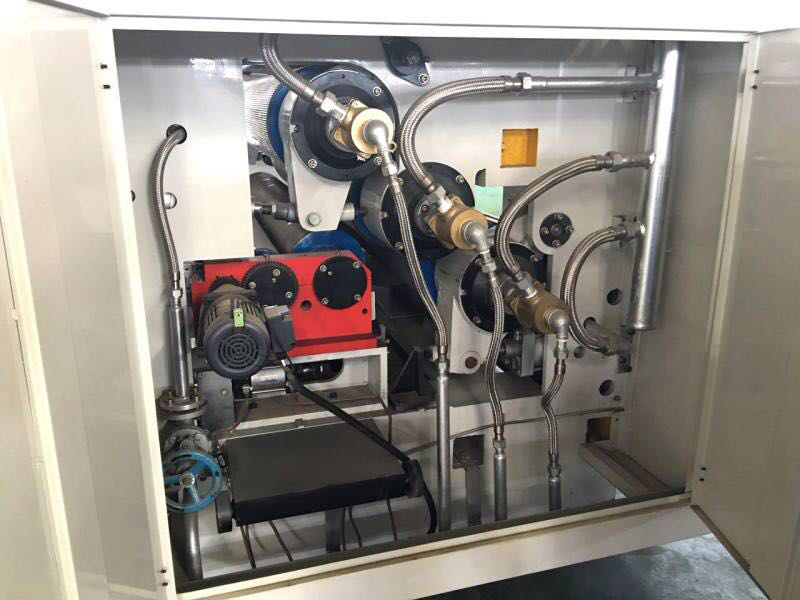

  • Quiet and stable: The drive reducer box uses oil immersion type lubrication for quieter, smoother operations; coupled with a gimbal transmission system.
  • Easy adjustments: Pneumatic adjustment for corrugating, pressure, and glue roller.
  • Stable cardboard conveying: The single facer uses vacuum suction method with a wind control system, maintaining flute profiles stability at high speeds.
  • Durable bearings: High-temperature lubricating grease is used for the bearings of the corrugated and pressure rollers.
  • Automatic glue supply: The gluing parts are designed for automatic circular glue supply.
  • High quality rollers: The upper-lower corrugating rollers are made of 52CrMo high-quality alloy steel, heat-treated with HRC58°-60° hardness and surface grinding.
  • Enhanced glue rollers: The surface of the glue rollers is specially meshed and chrome-plated for optimal performance.
  • Independent gluing operation: The gluing unit can run independently or in tandem with the single facer, offering flexibility in the production line.
