HX Series

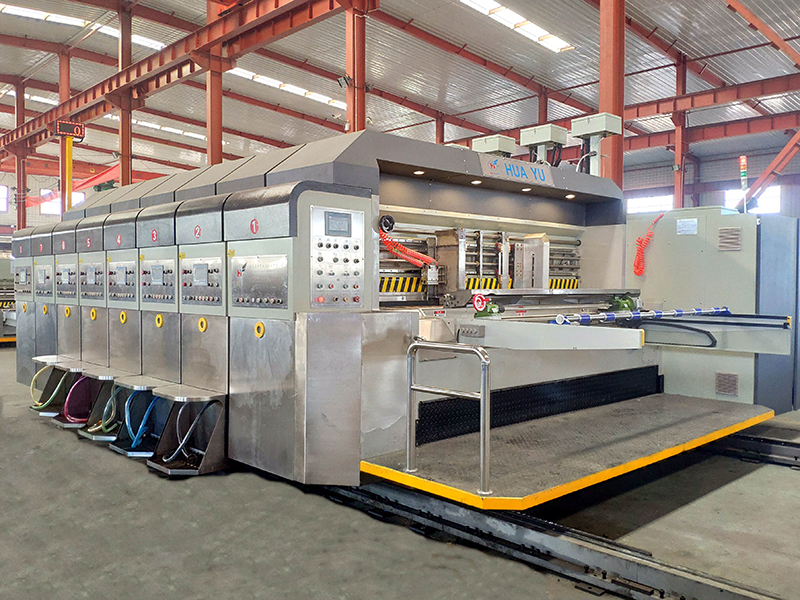

Vacuum Transfer Bottom Printer Dryer Slotter Die Cutter Machine
Fully computerized corrugated carton box production line
The HX series of bottom printer dryer slotter die cutter offers a streamlined solution for corrugated carton production, popular in Europe and the United States. This corrugated carton die cutting machine combines a vacuum transfer bottom printer with a fully computerized system, ensuring precision and ease in every step: feeding, printing, drying, slotting, and die-cutting. The advanced printing unit, featuring a ceramic roller and doctor blade, delivers crisp prints every time. Known for its reliability and adaptability, these printer dryer slotters die cutters are the best option for professionals seeking efficient, high-quality packaging solutions.
Technical Parameters
| Model | ||||||
| Max. design speed (pcs/min) | 350 | 300 | 250 | 200 | 200 | 180 |
| Working speed (pcs/min) (depending on cardboard size and printing) | 0-300 | 0-250 | 0-220 | 0-180 | 0-160 | 0-150 |
| Max. feeding size (mm) | 900×2000 | 1200×2400 | 1200×2800 | 1600×2800 | 1600×3200 | 1800×3400 |
| Skip feeding size (mm) | 1000×2000 | 1600×2400 | 1600×2800 | 2000×2800 | 2000×3200 | 2000×3400 |
| Max. printing size (mm) | 850×1950 | 1150×2350 | 1150×2750 | 1550×2750 | 1550×3150 | 175×3400 |
| Min. feeding size (mm) | 300×650 | 360×690 | 360×690 | 450×690 | 450×690 | 450×690 |
| Min. fold size (mm) | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm |
| Standard printing plate thickness (mm) | 850×1950 | 1150×2350 | 1150×2750 | 1550×2750 | 1550×3150 | 1750×3350 |
(Size can be customized according to customer requirements)
Main Configurations

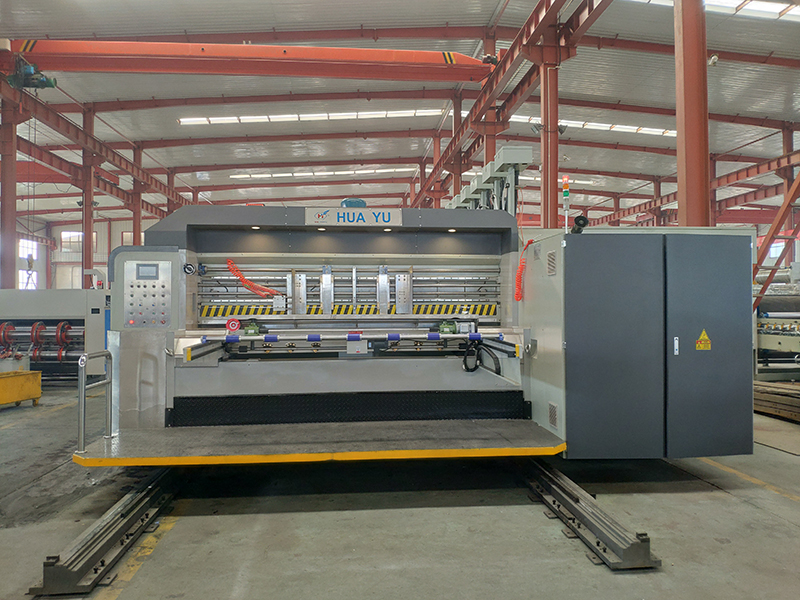

- Computerized feeder unit
- 1. Vacuum absorption lead edge feeder for precise material feeding
- 2. Extended feeding system for improved paper flow
- 3. Computerized control system with an intuitive touch screen interface
- 4. Equipped with static electricity removal, multi-row brushes, and powerful dust-collecting fans for effective dust elimination
- 5. Computerized setting for accurate control of feeding pressure

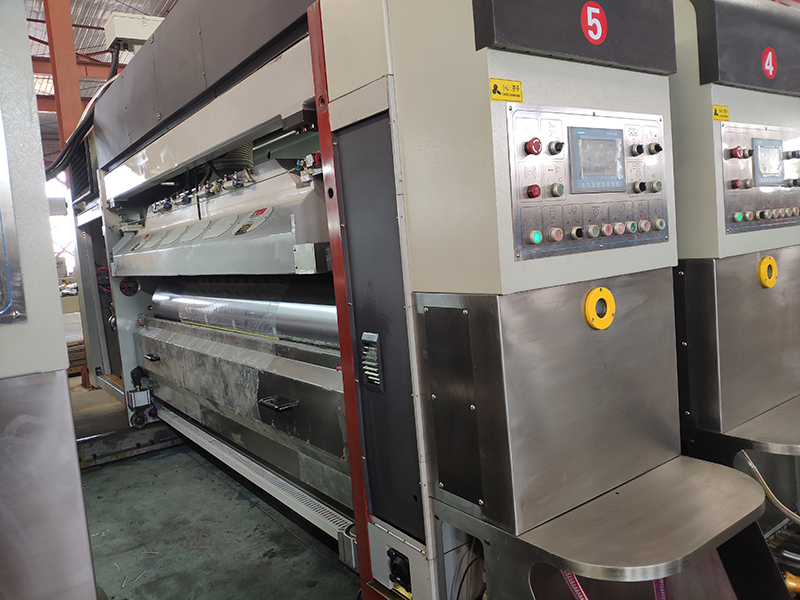

- Computerized printing unit
- 1. Bottom printing machine with full vacuum absorption transfer for cardboard
- 2. Ceramic anilox roller
- 3. Equipped with a doctor blade system
- 4. Quick-change hanging plate with tilt correction technology
- Computerized setting for feeding pressure
- Computerized drying unit
- 1. Single unit operation
- 2. Vacuum absorption for cardboard transfer
- 3. Cold air blowing / electrically heated hot-air drying system
- 4. Computerized setting for feeding pressure
- Computerized coater unit
- 1."Bottom printing" machine with full vacuum absorption transfer for cardboard
- 2.Ceramic anilox roller
- 3.Equipped with a doctor blade system
- 4.Quick-change hanging plate with tilt correction technology
- 5.Computerized setting for feeding pressure

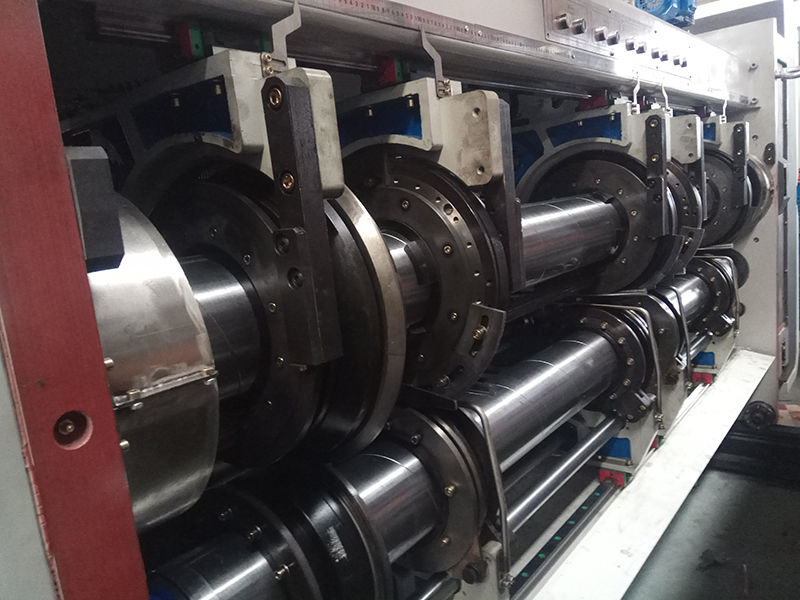

- Computerized slotter unit
- 1. Slot unit controllable via the main touch screen or the slot unit touch screen
- 2. Linear guideway for lateral movement with universal cross joints
- 3. Touch screen settings for slotting, creasing, and pre-creasing pressure
- 4. Box height adjustment via touch screen
- 5. Significant displacement capability for the middle knife
- Computerized die cutter unit
- 1. speed difference compensation system
- 2.imported soft anvil rubber
- 3.feeding pressure computerized setting
