HS Series

Vacuum Transfer Top Printer Dryer Slotter Die Cutter Machine

Fully computerized corrugated carton box production line

  • Vacuum Transfer Bottom Printer Dryer Slotter Die Cutter Machine
  • Vacuum Transfer Bottom Printer Dryer Slotter Die Cutter Machine
Inquiry

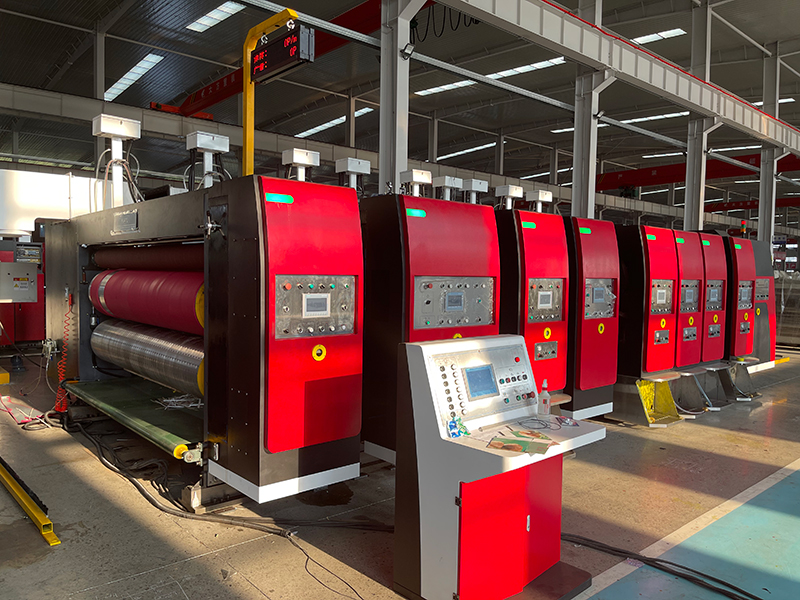

The HS series is a fully computerized solution for corrugated carton box production with its vacuum transfer top printer. This comprehensive system includes units for feeding, printing, drying, slotting, and die-cutting, all designed for optimal efficiency and precision. The main features include a fully vacuum transfer mechanism and a printer unit equipped with a high-grade ceramic roller and doctor blade system, ensuring high-quality printing. The slotting unit is also fully computerized, allowing for precise adjustments in the carton box dimensions including height, length, and width. This level of automation facilitates quick and easy order changes, making this carton box making machinery ideal for large-scale production of carton boxes.

Technical Parameters
Model 920 1224 1228 1628 1632 1834
Max. design speed (pcs/min) 350 300 250 200 200 180
Working speed (pcs/min) (depending on cardboard size and printing) 0-300 0-250 0-220 0-180 0-160 0-150
Max. feeding size (mm) 900×2000 1200×2400 1200×2800 1600×2800 1600×3200 1800×3400
Skip feeding size (mm) 1000×2000 1600×2400 1600×2800 2000×2800 2000×3200 2000×3400
Max. printing size (mm) 850×1950 1150×2350 1150×2750 1550×2750 1550×3150 175×3400
Min. feeding size (mm) 300×650 360×690 360×690 450×690 450×690 450×690
Min. fold size (mm) 7.2 mm 7.2mm 7.2mm 7.2mm 7.2mm 7.2mm
Standard printing plate thickness (mm) 850×1950 1150×2350 1150×2750 1550×2750 1550×3150 1750×3350

(Size can be customized according to customer requirements)

Main Configurations
  • 1. Lead edge feeder utilizing Taiwan technology.
  • 2. Touch screen control for adjustments.
  • 3. Equipped with multi-row brushes and multiple dust-collecting fans for effective dust removal.
  • 4. Computerized setting for feeding pressure.
  • 1. Top printing machine with an option for roller transfer or full vacuum adsorption transfer.
  • 2. Optional ceramic anilox roller.
  • 3. Optional doctor blade system available.
  • 4. Quick-change hanging plate with tilt correction technology.
  • 5. Computerized setting for feeding pressure.
  • 1. Slot unit controllable via the main touch screen or the slot unit touch screen.
  • 2. Linear guideway for lateral movement with universal cross joints.
  • 3. Touch screen settings for adjusting slotting, creasing, and pre-creasing pressure.
  • 4. Box height adjustment via touch screen.
  • 5. Significant displacement capability for the middle knife.
  • 1. Speed difference compensation system.
  • 2. Imported soft anvil rubber pad.
  • 3. Computerized setting for feeding pressure.
