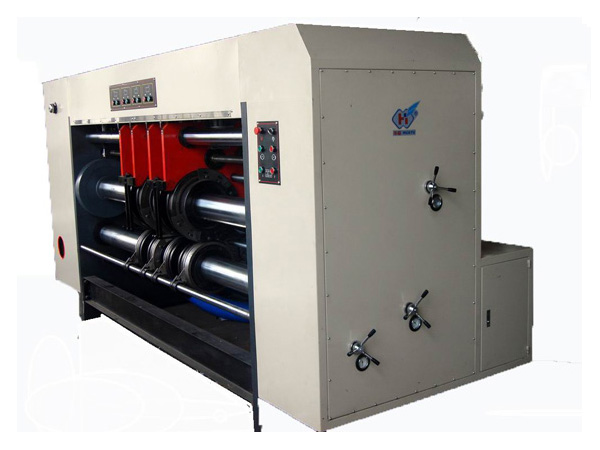

HY-ZK Series automatic rotary slotter is ideal for producing standard corrugated cartons. The rotary slotting machine employs a suction type lead edge feeding unit which can ensures high feeding precision. The suction strength is adjustable.

In one stroke, this box making machinery can complete a series of processes including slotting, creasing, slitting and corner cutting. The slotting size and carton height are adjustable through the touch screen. The maximum machine speed can reach 140 sheets per minute.

Technical Parameters
Model HY-ZK1224 HYZK-1228 HYZK-1624 HYZK-1628
Max. cardboard size (mm) 1200×2400 1200×2800 1600×2400 1600×2800
Min. cardboard size (mm) 360×700 360×700 420×700 420×700
Speed (pcs/min) 150 140 120 120
Cardboard thickness (mm) 2-11 2-11 2-11 2-11
Slot interval (mm) Positive 165×165 165×165 165×165 165×165
Reverse 265×100 265×100 265×100 265×100

(Size can be customized according to customer requirements)

Main Features

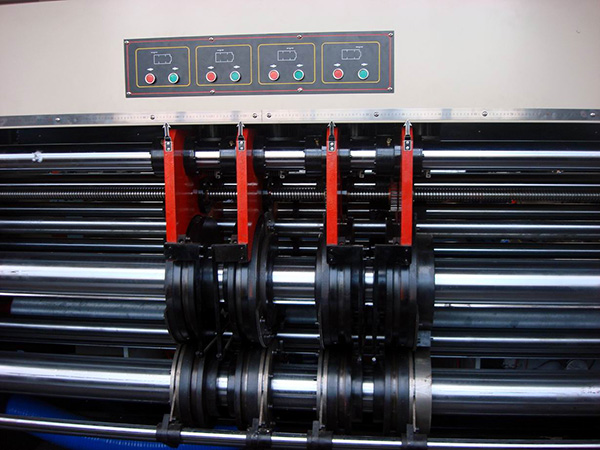

  • The axial and vertical movement of slotting knife seat is motorized adjust. (Manual adjustment is optional)
  • This automatic slotter machine for corrugated cardboards employs 7mm thick alloy knives with heat treatment.
  • Slotting phase adjustment is controlled by PLC and touch screen.
